REJ348Rubber Expansion Joints

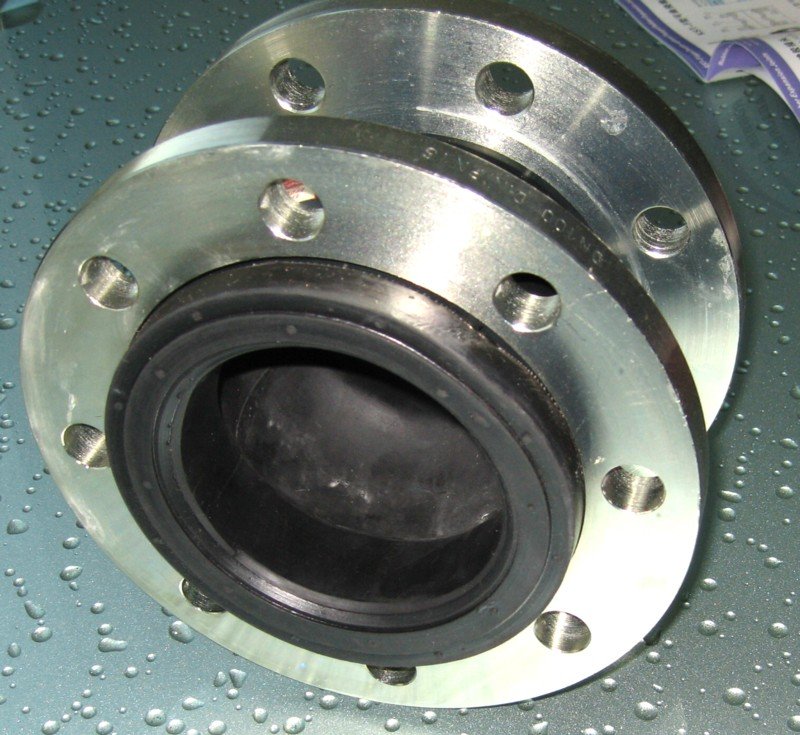

EPDM Rubber Expansion Joint with Flanges
EPDM 单球法兰式橡胶接头
Flanged EPDM rubber expansion joint for axial and lateral movement, with DN32-DN500 size and pressure tiers.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications
The listed construction uses a rubber main body, nylon cord fabric lining, hard steel wire frame and mild steel flanges. Source data gives working pressure of 1.6 MPa for DN32-DN300 and 1.0 MPa for DN350-DN500.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- REJ348
- Nominal diameter
- DN32-DN300 and DN350-DN500 source tiers
- Working pressure
- 1.6 MPa / 1.0 MPa by diameter tier
- Bursting pressure
- 4.8 MPa / 3.0 MPa by diameter tier
- Vacuum
- 750 / 500 mmHg by diameter tier
- Applicable temperature
- -20 to +115 C
- Listed media
- Air, compressed air, water, seawater, hot water and weak acid
- Deflection angle
- 15 degrees in the listed displacement table
- Displacement values
- Axial: +extension/−compression; lateral offset; total angular deflection (α1+α2)
- DN32 (1¼")
- L: S-10 95 / S-10A 150 / S-15 130 mm; axial +6/−10 mm; lateral 9 mm; angle 15°
- DN40 (1½")
- L: S-10 95 / S-10A 150 / S-15 130 mm; axial +6/−10 mm; lateral 9 mm; angle 15°
- DN50 (2")
- L: S-10 105 / S-10A 150 / S-15 130 mm; axial +7/−10 mm; lateral 10 mm; angle 15°
- DN65 (2½")
- L: S-10 115 / S-10A 150 / S-15 130 mm; axial +8/−13 mm; lateral 12 mm; angle 15°
- DN80 (3")
- L: S-10 130 / S-10A 150 / S-15 130 mm; axial +18/−15 mm; lateral 12 mm; angle 15°
- DN100 (4")
- L: S-10 135/150 / S-10A 150 / S-15 130 mm; axial +18/−19 mm; lateral 13 mm; angle 15°
- DN125 (5")
- L: S-10 170 / S-10A 150 / S-15 130 mm; axial +18/−19 mm; lateral 13 mm; angle 15°
- DN150 (6")
- L: S-10 180 / S-10A 150 / S-15 130 mm; axial +16/−19 mm; lateral 14 mm; angle 15°
- DN200 (8")
- L: S-10 195/205 / S-10A 150 / S-15 130 mm; axial +16/−20 mm; lateral 22 mm; angle 15°
- DN250 (10")
- L: S-10 230/240 / S-10A 200 / S-15 130 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- DN300 (12")
- L: S-10 245/260 / S-10A 200 / S-15 130 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- DN350 (14")
- L: S-10 265 / S-10A 200 / S-15 200 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- DN400 (16")
- L: S-10 265 / S-10A 200 / S-15 200 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- DN450 (18")
- L: S-10 265 / S-10A 200 / S-15 200 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- DN500 (20")
- L: S-10 265 / S-10A 200 / S-15 200 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- DN600 (24")
- L: S-10 265 mm; axial +16/−28 mm; lateral 22 mm; angle 15°
- Material
- EPDM rubber body; nylon cord fabric; hard steel wire; mild steel flanges
- Origin
- China
- Temperature range
- -20 to +115 C
- Dimensions
- DN32-DN500 in the source technical range
