E-Glass Fiber YarnGF1

Uncoated Fabric

E-Glass Fiber Yarn

无碱玻璃纤维纱

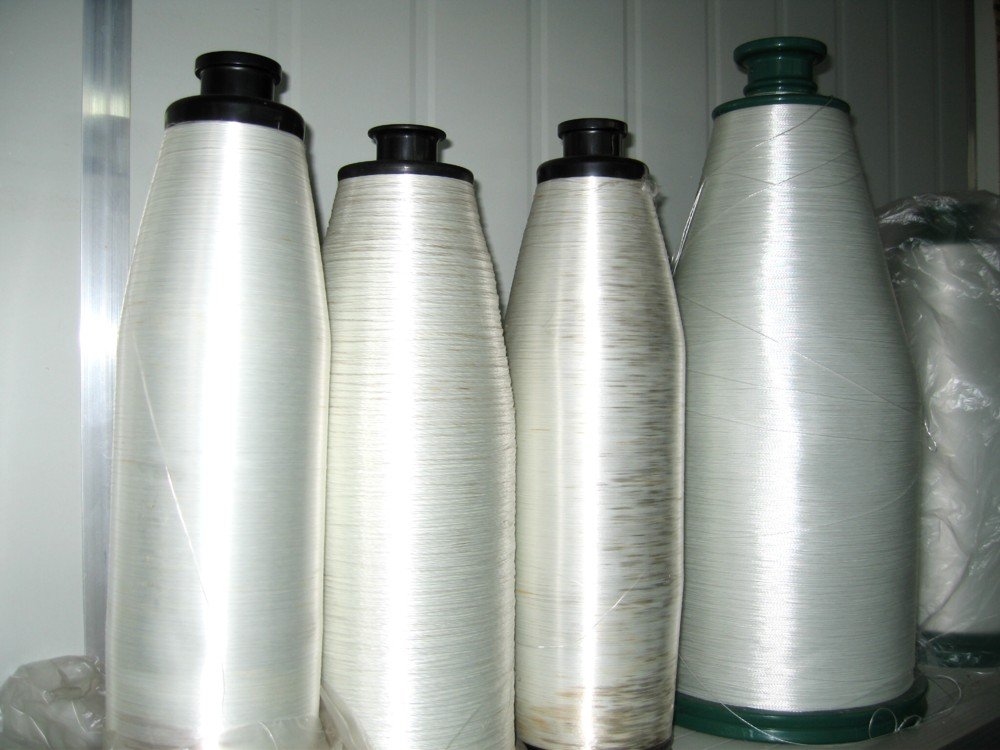

Continuous-filament E-glass yarn on cones for weaving, braiding, sewing and wrapping. Linear density, twist and sizing are matched to the process; typical continuous service up to 550 °C.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

E-glass is an alkali-free borosilicate glass drawn into continuous filaments. The yarn is supplied as single or plied strands on cones and is the raw material for glass tapes, fabrics, braided sleeving and ropes; it is also used as high-temperature sewing thread for insulation jackets. The fibre does not burn, does not absorb water and keeps its strength up to about 550 °C, with a softening point around 840 °C. Tell us the linear density (tex), number of plies, twist direction and sizing type (textile, silane or starch) you need; standard constructions are kept on cones of about 1–3 kg.

Weaving of glass tapes and fabricsBraided sleeving and ropesHigh-temperature sewing threadReinforcement and filtration yarnWrapping of cables and heating elements

We confirm specifications and available configurations when preparing each quotation.

Product code
GF1
Material
E-glass continuous filament (alkali content below 0.8 %)
Construction
Single or plied twisted yarn
Linear density
To order, e.g. 68 tex × 2 to 400 tex × 3
Density
Approx. 2.54 g/cm³ (fibre)
Service temperature (typical)
Up to 550 °C continuous; softening point approx. 840 °C
Supply form
Cones of approx. 1–3 kg, cartons or pallets
Note
Typical values for E-glass; the lot datasheet comes with the quotation

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
