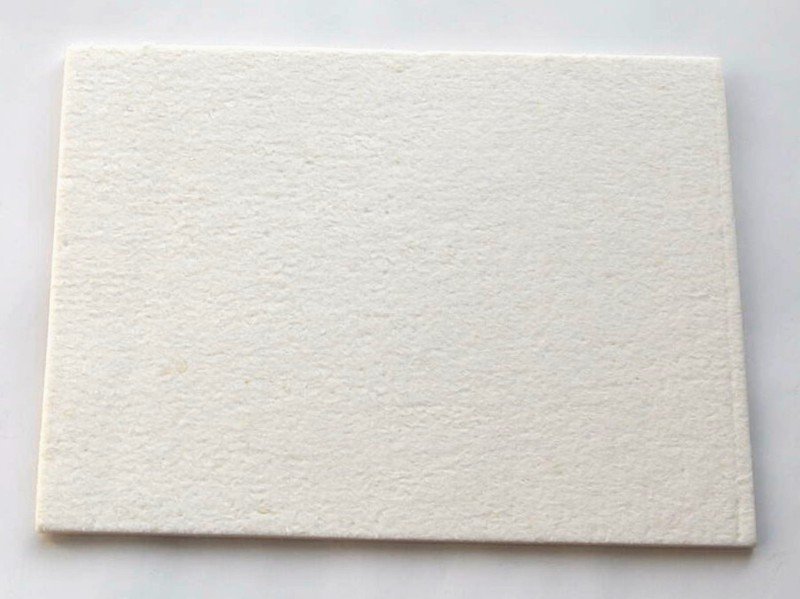

Ceramic Fiber PaperGP217

Ceramic Fiber Products

Ceramic Fiber Paper

陶瓷纤维纸

Flexible ceramic fibre paper made from aluminosilicate fibres with a small organic binder, thickness 1 mm to 6 mm. A light, uniform insulating sheet for gaskets, kiln furniture linings, moulds and heat shields; classification 1260 °C.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Ceramic fibre paper is produced in a wet-laid process from washed aluminosilicate fibres and a small amount of organic binder, giving a smooth, uniform sheet with low thermal conductivity and good handling strength. It can be cut, punched, folded and wrapped, and is used as a gasket and parting layer in kilns and furnaces, as back-up insulation behind refractory bricks, as a lining for moulds and ladles in foundries, as an insulating layer in glass-forming tooling and in appliance and automotive heat shields. The binder burns out on first heating. Standard thicknesses are 1, 2, 3, 4, 5 and 6 mm in rolls of 610 mm or 1220 mm width.

Gaskets and parting layers in kilns and furnacesBack-up insulation behind refractoryMould and ladle linings in foundriesGlass-forming tooling insulationAppliance and automotive heat shields

We confirm specifications and available configurations when preparing each quotation.

Product code
GP217
Material
Aluminosilicate ceramic fibre, organic binder
Classification temperature
1260 °C
Service temperature (typical)
Approx. 1000 °C continuous
Thickness
1, 2, 3, 4, 5 or 6 mm
Density
Approx. 180–250 kg/m³
Width
610 mm or 1220 mm
Supply form
Rolls or cut sheets, carton packed
Note
Binder burns off on first heating

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
