Carbonized TapeCAF230

Carbon Fiber Products

Carbonized Tape

碳化带

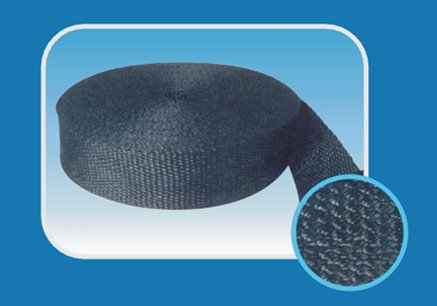

Narrow woven tape made from pre-oxidised and carbonised PAN fibre, black as shown. A non-melting, flame-resistant tape for wrapping pipes and cables, binding blankets and protecting hoses in hot and spark-exposed areas.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Carbonised tape is woven on narrow looms from the same oxidised and partially carbonised PAN yarn as our carbonised cloth. The tape does not melt or drip, resists sparks and short flame contact, has a limiting oxygen index above 40 % and tolerates continuous temperatures around 300 °C. It is used to wrap hydraulic hoses, cables and pipework near furnaces and welding stations, as edge binding for welding and fire blankets, as protective wrap on exhaust and manifold systems and as a flexible gasket strip. Widths from 10 mm to 100 mm and thicknesses from about 1 mm to 3 mm are supplied in rolls.

Hose and cable protection near heatEdge binding for welding and fire blanketsExhaust and manifold wrapFlexible gasket and spacer stripsFire-resistant lacing and binding

We confirm specifications and available configurations when preparing each quotation.

Product code
CAF230
Material
Pre-oxidised / carbonised PAN fibre
Weave
Plain weave, finished selvedges
Colour
Black
Width
10–100 mm to order
Thickness
Approx. 1–3 mm
Limiting oxygen index
Above 40 %
Service temperature (typical)
Approx. 300 °C continuous
Supply form
Rolls of 20–50 m, carton packed

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
