Black Coated Woven Glass Fabric (KE-1300)TIP302

Coated Fabric

Black Coated Woven Glass Fabric (KE-1300)

黑色涂层玻璃纤维布(KE-1300)

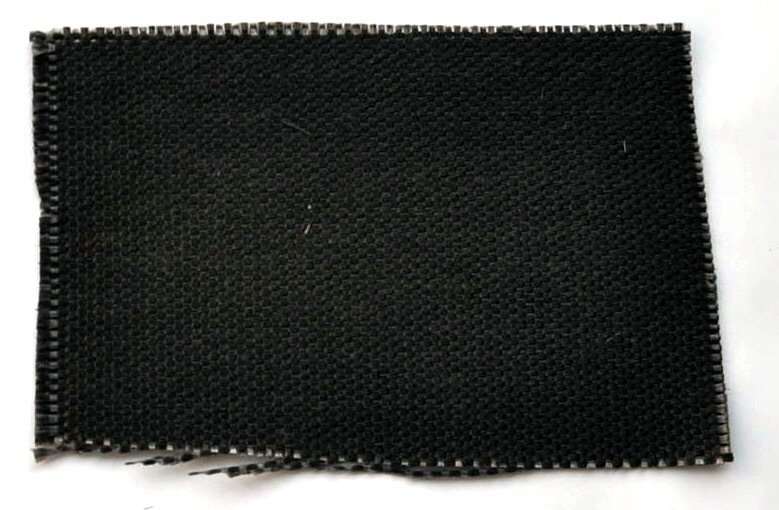

Black coated woven glass fabric on the plain-weave KE-1300 base fabric of 1310 g/m², 1.4 mm thickness and 200 cm width listed in the company brochure.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

The company brochure gives the data sheet of the KE-1300 base fabric (item number 50000088): plain weave in ET9 1290 Tex yarn, 200 cm (+2/-0 cm) width, 1.4 ± 0.1 mm thickness, 1310 ± 50 g/m² weight, tensile strength above 4800 N/5 cm in warp and 4500 N/5 cm in weft, and a 550 °C service temperature. Coating weight and finished values are confirmed for each order in the quotation.

Welding curtains, blankets and screensInsulation jackets and valve coversFabric expansion joints and flexible connectorsHeat shields and protective coversFireproof curtains and partitions

We confirm specifications and available configurations when preparing each quotation.

Product code
TIP302
Catalogue category
Coated Fabric
Base fabric item number
50000088
Base weave
Plain
Warp yarn
ET9 1290 Tex
Weft yarn
ET9 1290 Tex
Base fabric width
200 cm (+2/-0 cm)
Base fabric thickness
1.4 ± 0.1 mm
Base fabric weight
1310 ± 50 g/m²
Warp thread count
6 ± 0.5 per cm
Weft thread count
4 ± 0.5 per cm
Base fabric tensile strength
>4800 N/5 cm warp; >4500 N/5 cm weft
Base fabric LOI
<0.5%
Base fabric service temperature
550 °C
Base fabric style
Texturized M38 glass fabric
Coating
Black acrylic
Material
Woven glass fabric with black coating
Model
KE-1300
Temperature range
550 °C service temperature (base fabric)
Dimensions
200 cm (+2/-0 cm) width; 1.4 ± 0.1 mm base fabric thickness
Weight
1310 ± 50 g/m² base fabric weight

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
