TIP305Coated Fabric
Acrylic Coated Glass Fiber Cloth-Blue-2523
丙烯酸涂层玻璃纤维布-蓝色-2523

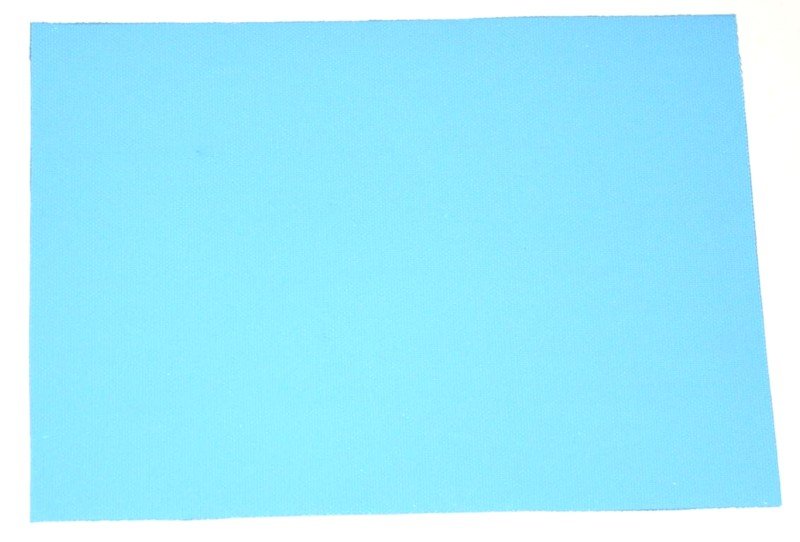

Woven glass fibre cloth (style 2523, plain weave) finished with a coloured acrylic coating, shown here in blue. The coating locks the weave against fraying and sparks and gives a clean, coloured surface for welding curtains, insulation covers and protective textiles.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications
Acrylic coated glass cloth is an E-glass fabric impregnated with a pigmented acrylic resin and cured, which binds the fibres, prevents fraying when the cloth is cut and sewn, and gives an abrasion-resistant, coloured surface. The base fabric for this item is style 2523 in plain weave; the colour shown is blue. Acrylic coating is a light, economical finish: the cloth remains flexible and non-combustible, the coating itself tolerates about 180–200 °C in continuous use while the glass base withstands 550 °C, so the fabric is widely used for light-duty welding curtains and screens, removable insulation jackets, heat-resistant protective covers and decorative heat shields. Other colours and base styles are available from the same range.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- TIP305
- Base fabric
- Woven E-glass fabric, style 2523
- Weave
- Plain weave
- Coating
- Pigmented acrylic resin, both sides
- Colour
- Blue
- Weight
- Approx. 450–650 g/m² (base style dependent)
- Width
- 1000 mm or 1500 mm
- Service temperature (typical)
- Coating approx. 180–200 °C continuous; glass base up to 550 °C
- Supply form
- Rolls of 50 m, PE-wrapped
Ordering
How to order this product
Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.
- Minimum order
- Confirmed in the quotation (ask us about trial quantities).
- Lead time
- Confirmed in the quotation, depending on quantity and configuration.
- Packaging
- Export packaging: rolls, cartons or pallets as required by the product and the shipment.
- Port of loading
- Shanghai, China (other ports on request).
- Trade terms
- EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
- Payment
- Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
- Samples
- Available on request; sample and courier costs are confirmed before dispatch.
- Documents
- Commercial invoice, packing list, certificate of origin, test report or material certificate on request.
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
Required construction, coating, compound or reference grade.
Thickness, width, length, diameter, weight or finished format.
Temperature, pressure, media, movement and service environment.
Required quantity, delivery country and requested timing.
Applicable standard, test report, material certificate or origin document.
