E-Glass Fiber Yarn with 1-Ply Chrome Wire InsertTIP312

Uncoated Fabric

E-Glass Fiber Yarn with 1-Ply Chrome Wire Insert

加1股铬丝无碱玻璃纤维纱

E-glass fibre yarn twisted together with one strand of fine stainless (chrome-nickel) wire. The wire keeps seams and wraps intact at temperatures where ordinary thread fails; typical service up to 550 °C.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

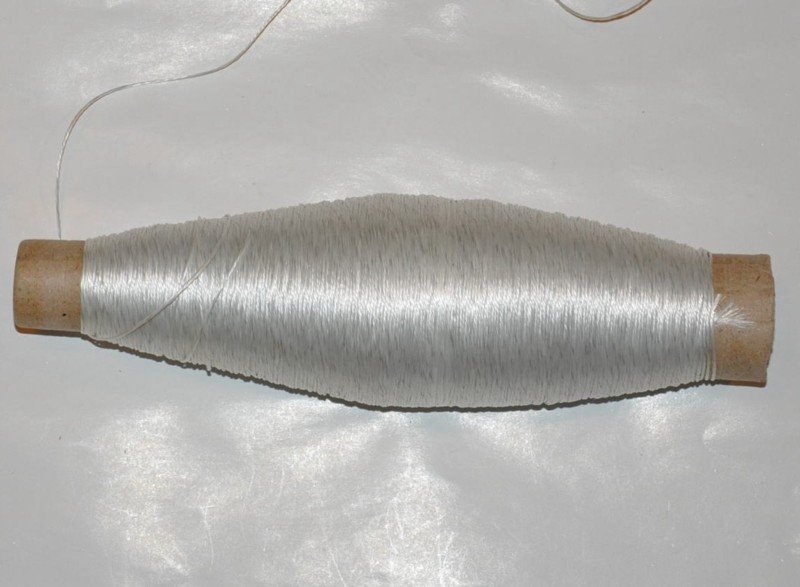

This reinforced yarn combines plied E-glass fibre with a single ply of fine stainless wire. The glass carries the heat resistance, while the metal wire adds tensile strength and keeps the yarn from fraying under abrasion or thermal cycling. It is used as sewing thread for removable insulation jackets, welding blankets and exhaust wraps, and as a weaving or knitting yarn for wire-reinforced tapes, ropes and sleeving. Supplied on cardboard tubes as shown; linear density, wire diameter and package weight are confirmed in the quotation.

Sewing thread for insulation jackets and welding blanketsWire-reinforced glass tapes and ropesKnitted and braided sleevingExhaust and manifold wrap stitching

We confirm specifications and available configurations when preparing each quotation.

Product code
TIP312
Material
E-glass fibre yarn
Wire insert
1 ply of stainless (chrome-nickel) wire
Construction
Plied glass yarn twisted with the wire
Service temperature (typical)
Up to 550 °C (glass); wire remains intact above that
Supply form
Cardboard tubes / bobbins, carton packed
Note
Linear density and wire diameter to order

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
