Silicone Rubber Coated Glass Fiber Cloth-3732-GrayTIP330

Coated Fabric

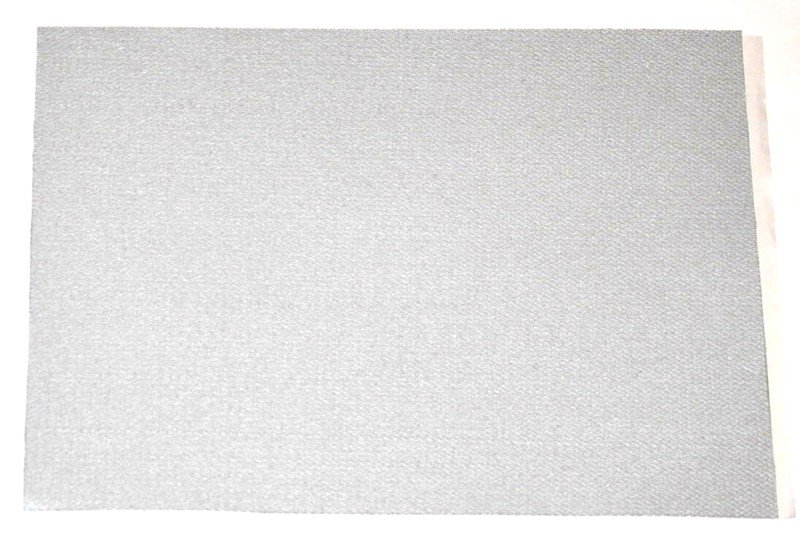

Silicone Rubber Coated Glass Fiber Cloth-3732-Gray

硅橡胶涂层玻璃纤维布-3732-灰色

Woven glass cloth style 3732 (about 430 g/m², 0.43 mm) coated with silicone rubber, grey version. Flexible, waterproof and heat resistant from −60 °C to +260 °C for welding blankets, expansion joints, insulation jackets and heat shields.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Silicone rubber coated glass fibre cloth uses the common style 3732 plain-weave E-glass fabric as its base and a silicone rubber coating applied on one or both sides. The result is a soft, strong and completely non-combustible fabric that sheds water and sparks, resists ozone and UV, stays flexible in frost and withstands continuous temperatures of about 260 °C (short peaks higher). The grey cloth shown here is used for welding and spark blankets, fabric expansion joints, removable insulation jackets, fire-resistant curtains and flexible ducting. Red, white, black and other colours, as well as different base styles and coating weights, are available in the same range.

Welding and spark blanketsFabric expansion jointsRemovable insulation jacketsFire curtains and smoke barriersFlexible ducting and heat shields

We confirm specifications and available configurations when preparing each quotation.

Product code
TIP330
Base fabric
Woven E-glass fabric, style 3732
Coating
Silicone rubber, one or both sides
Colour
Gray (as shown); red, white, black to order
Thickness
Approx. 0.5–0.7 mm coated
Weight
Approx. 550–700 g/m² coated
Width
1000 mm or 1270 mm
Service temperature (typical)
−60 °C to +260 °C continuous
Supply form
Rolls of 50 m, PE-wrapped

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
