IS343Fiberglass Insect Screens
Fiberglass Insect Screen (Assorted Colours)
玻璃纤维平织窗纱-2

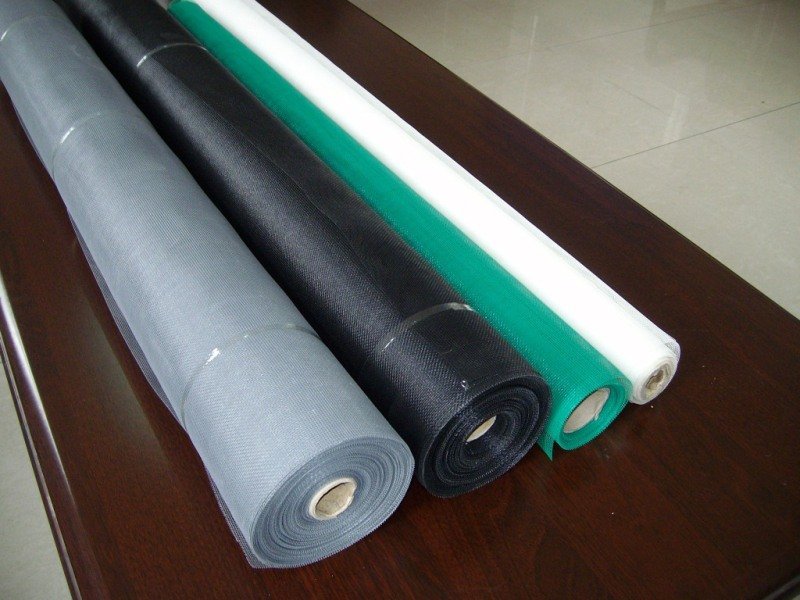

Fiberglass insect screen woven from PVC-coated glass yarn (32 % glass fibre, 68 % PVC), 18 × 16 mesh, about 120 g/m². This listing shows the assorted colour rolls (grey, black, green and white) that are usually combined in one order. Widths from 610 mm to 2400 mm (16" to 96").
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications
Fiberglass insect screen is produced by coating glass fibre yarn with PVC and then weaving it into a stable 18 × 16 mesh that is heat-set so the mesh does not shift. The screen keeps out mosquitoes, flies and other insects while letting air and light through, gives some shading, does not rust, rot or absorb odours, is washable and keeps its shape and colour for years in windows and doors. This listing shows the assorted colour rolls (grey, black, green and white) that are usually combined in one order. Composition is 32 % fiberglass and 68 % PVC, yarn diameter 0.011" (0.28 mm), weight about 120 g/m²; standard colours are grey, black, grey/white, white and blue, with green and other colours available. Rolls are supplied in widths from 16" to 96" (610–2400 mm) and lengths of 30 m; cut-length retail packs can be made to order.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- IS343
- Material
- PVC-coated glass fibre yarn (32 % fiberglass, 68 % PVC)
- Mesh
- 18 × 16 per inch
- Yarn
- Diameter 0.011" (0.28 mm)
- Weight
- Approx. 120 g/m²
- Width
- 610–2400 mm (16"–96")
- Roll length
- 30 m standard
- Colour
- Gray, black, green, white (as shown); blue and others to order
- Packing
- Rolls on cores, PE-wrapped, cartons or pallets
Ordering
How to order this product
Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.
- Minimum order
- Confirmed in the quotation (ask us about trial quantities).
- Lead time
- Confirmed in the quotation, depending on quantity and configuration.
- Packaging
- Export packaging: rolls, cartons or pallets as required by the product and the shipment.
- Port of loading
- Shanghai, China (other ports on request).
- Trade terms
- EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
- Payment
- Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
- Samples
- Available on request; sample and courier costs are confirmed before dispatch.
- Documents
- Commercial invoice, packing list, certificate of origin, test report or material certificate on request.
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
Required construction, coating, compound or reference grade.
Thickness, width, length, diameter, weight or finished format.
Temperature, pressure, media, movement and service environment.
Required quantity, delivery country and requested timing.
Applicable standard, test report, material certificate or origin document.
