SF205Silica Fiber Products
Silica Fiber Tape
高硅氧纤维带
Woven tape made from high-silica glass yarn (SiO2 content about 96 %) for insulation and protection at temperatures where E-glass is no longer sufficient: continuous service around 900–1000 °C, short peaks higher.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications

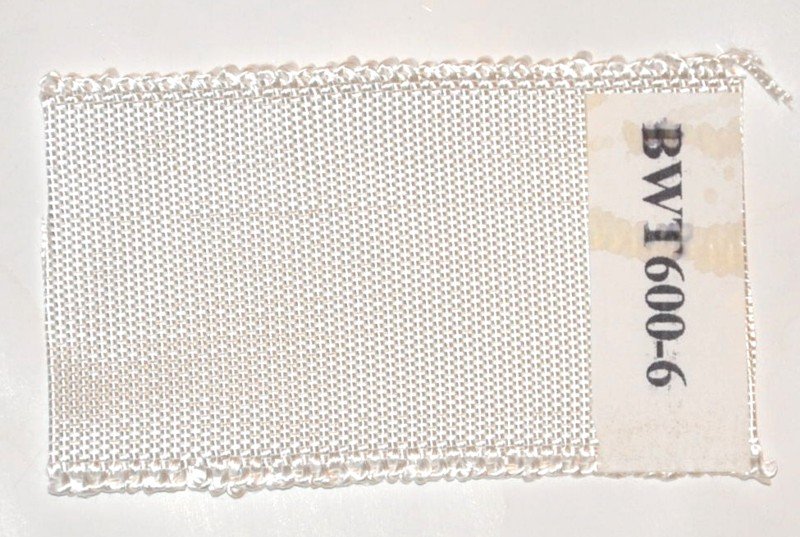

Silica fibre tape is woven from amorphous high-silica yarn obtained by leaching glass fibre to a silica content of at least 96 %. The tape does not burn or melt in contact with sparks and molten splash, keeps its flexibility after exposure and has a softening point of about 1700 °C; typical continuous service is 900–1000 °C. It is used to wrap pipework, cables and thermocouple leads in furnaces and foundries, as edge binding for silica and ceramic blankets, as a gasket strip for furnace doors and as a protective layer on welding and casting equipment. The sample in the photo carries the reference BWT600-6; widths from 10 mm to 200 mm and thicknesses from about 0.6 mm to 3 mm are available.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- SF205
- Material
- High-silica glass fibre yarn
- SiO2 content
- Approx. 96 % and above
- Weave
- Plain weave
- Width
- 10–200 mm to order
- Thickness
- Approx. 0.6–3 mm
- Service temperature (typical)
- Approx. 900–1000 °C continuous; softening point approx. 1700 °C
- Sample reference
- BWT600-6 (as shown)
- Supply form
- Rolls of 30–50 m, carton packed
Ordering
How to order this product
Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.
- Minimum order
- Confirmed in the quotation (ask us about trial quantities).
- Lead time
- Confirmed in the quotation, depending on quantity and configuration.
- Packaging
- Export packaging: rolls, cartons or pallets as required by the product and the shipment.
- Port of loading
- Shanghai, China (other ports on request).
- Trade terms
- EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
- Payment
- Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
- Samples
- Available on request; sample and courier costs are confirmed before dispatch.
- Documents
- Commercial invoice, packing list, certificate of origin, test report or material certificate on request.
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
Required construction, coating, compound or reference grade.
Thickness, width, length, diameter, weight or finished format.
Temperature, pressure, media, movement and service environment.
Required quantity, delivery country and requested timing.
Applicable standard, test report, material certificate or origin document.
