PU Coated Woven Glass FabricGF224

Coated Fabric

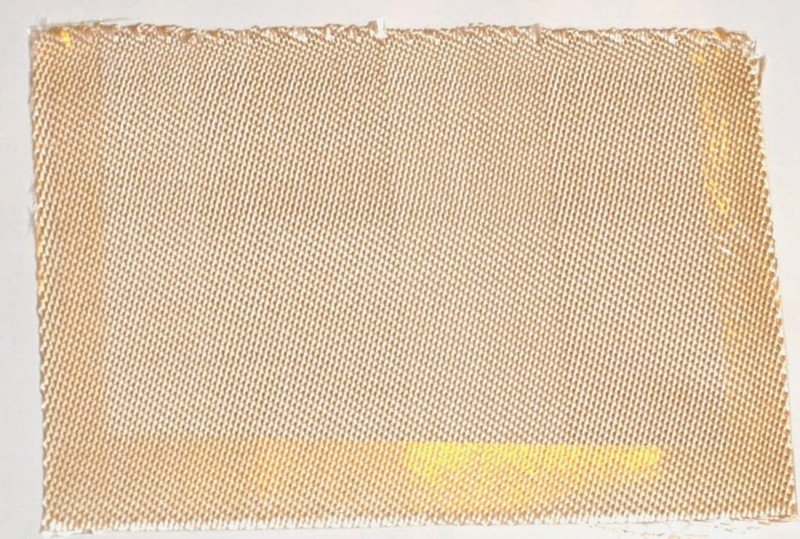

PU Coated Woven Glass Fabric

PU涂层玻璃纤维布

Woven glass fabric with a polyurethane coating for flexible connectors, expansion joint covers and protective covers that need abrasion resistance and flexibility. Tan colour as shown; typical service from −40 °C to +110 °C.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

PU coated glass fabric uses a woven E-glass base for dimensional stability and a polyurethane coating that adds abrasion resistance, flexibility and a sealed surface. Compared with PVC it keeps its flexibility over a wider temperature range and resists oils and many chemicals better; compared with silicone it is cheaper and more abrasion resistant but has a lower temperature limit. Typical uses are flexible duct and fan connectors, expansion joint covers, dust-extraction sleeves and protective covers for machinery. The coating can be applied on one or both sides and in other colours; finished thickness and weight are confirmed in the quotation.

Flexible fan and duct connectorsExpansion joint coversDust-extraction sleevesProtective covers for machineryAir cushions and bellows

We confirm specifications and available configurations when preparing each quotation.

Product code
GF224
Base fabric
Woven E-glass fabric
Coating
Polyurethane, one or both sides
Colour
Tan (as shown); other colours to order
Thickness
Approx. 0.3–0.8 mm
Weight
Approx. 350–700 g/m²
Width
1000–1500 mm
Service temperature (typical)
−40 °C to +110 °C continuous (coating limit)
Supply form
Rolls of 50 m, PE-wrapped

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
