Vermiculite Coated Glass Fiber ClothGF225

Coated Fabric

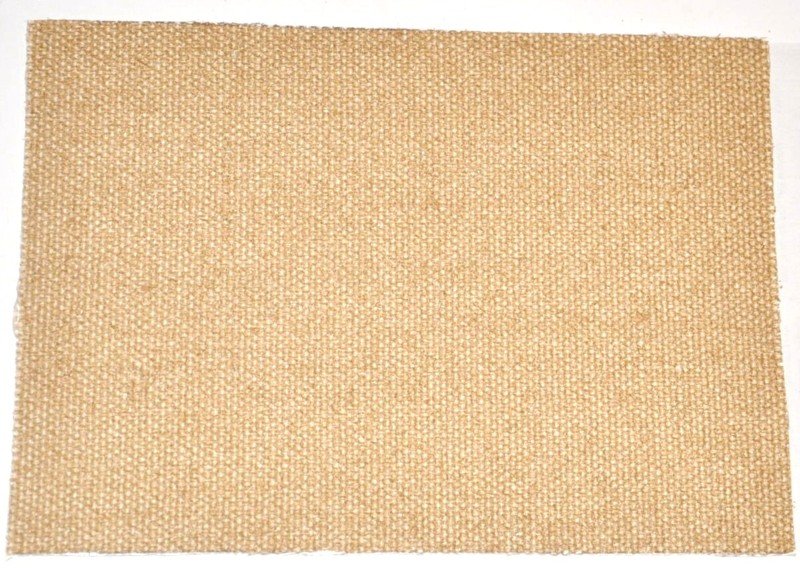

Vermiculite Coated Glass Fiber Cloth

蛭石涂层玻璃纤维布

Woven glass cloth impregnated with vermiculite, a mineral coating that raises the usable temperature of the glass base and protects it from sparks and molten metal splash. Used for welding blankets, furnace curtains and removable insulation covers.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Vermiculite coated glass cloth is a heavy E-glass fabric treated with a dispersion of exfoliated vermiculite. The mineral coating binds the surface fibres, stops the fabric from fraying and lets it withstand short-term exposure well above the normal limit of glass: continuous service is typically around 600 °C with peaks to 800 °C or more. The tan, slightly stiff fabric is a standard material for welding and grinding blankets, furnace and kiln curtains, insulation jackets on hot equipment and expansion joint fabrics. Weights of about 600 g/m² to 1000 g/m² are available; tell us the thickness and width you need.

Welding and grinding blanketsFurnace and kiln curtainsRemovable insulation jacketsExpansion joint fabricsHeat shields and spark protection

We confirm specifications and available configurations when preparing each quotation.

Product code
GF225
Base fabric
Woven E-glass fabric
Coating
Vermiculite dispersion, both sides
Colour
Tan / golden brown
Weight
Approx. 600–1000 g/m²
Thickness
Approx. 0.6–1.2 mm
Width
1000 mm or 1500 mm
Service temperature (typical)
Approx. 600 °C continuous; short peaks up to 800 °C and above
Supply form
Rolls of 30–50 m, PE-wrapped

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
