Graphite Coated Glass Fiber ClothGF226

Coated Fabric

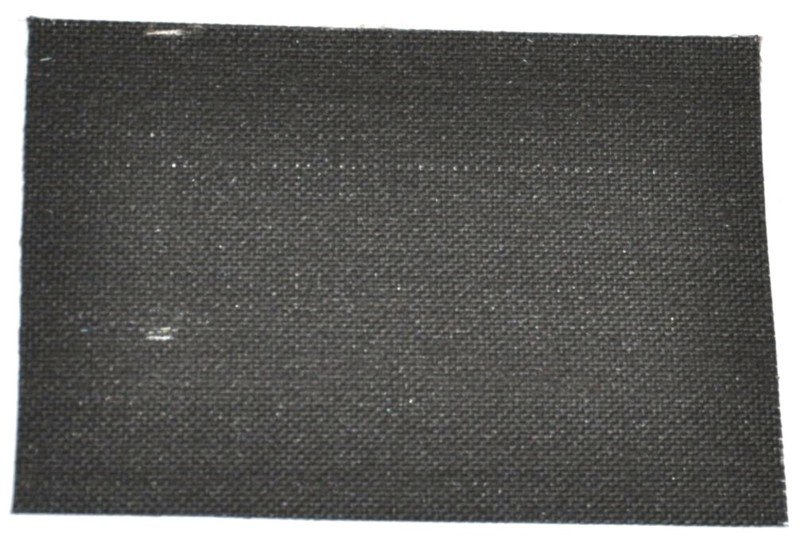

Graphite Coated Glass Fiber Cloth

石墨涂层玻璃纤维布

Woven glass fabric with a graphite coating that gives a dark, low-friction and heat-reflective surface. Used for welding blankets and curtains, heat shields, slide and sealing applications.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Graphite coated glass fibre cloth is produced by applying a graphite dispersion to a woven E-glass fabric and curing it. The coating seals the weave against sparks and dust, lowers friction so that hot parts can slide over the fabric, and improves heat radiation resistance; the base fabric keeps its strength to about 550 °C. The black cloth is used for welding blankets and curtains, protective covers for hot work, heat shields in vehicles and plant, expansion joint linings and as a release layer in moulding and glass-forming processes. Weights from about 400 g/m² to 1000 g/m² are available.

Welding blankets and curtainsHeat shields and radiant barriersExpansion joint liningsRelease and slide layers in hot processesProtective covers for hot work

We confirm specifications and available configurations when preparing each quotation.

Product code
GF226
Base fabric
Woven E-glass fabric
Coating
Graphite dispersion, both sides
Colour
Black / dark grey
Weight
Approx. 400–1000 g/m²
Thickness
Approx. 0.4–1.0 mm
Width
1000 mm or 1500 mm
Service temperature (typical)
Up to 550 °C continuous
Supply form
Rolls of 30–50 m, PE-wrapped

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
