Meta-Aramid Yarn (Nomex Type)TIP316

Aramid Fabric

Meta-Aramid Yarn (Nomex Type)

间位芳纶纱线(Nomex型)

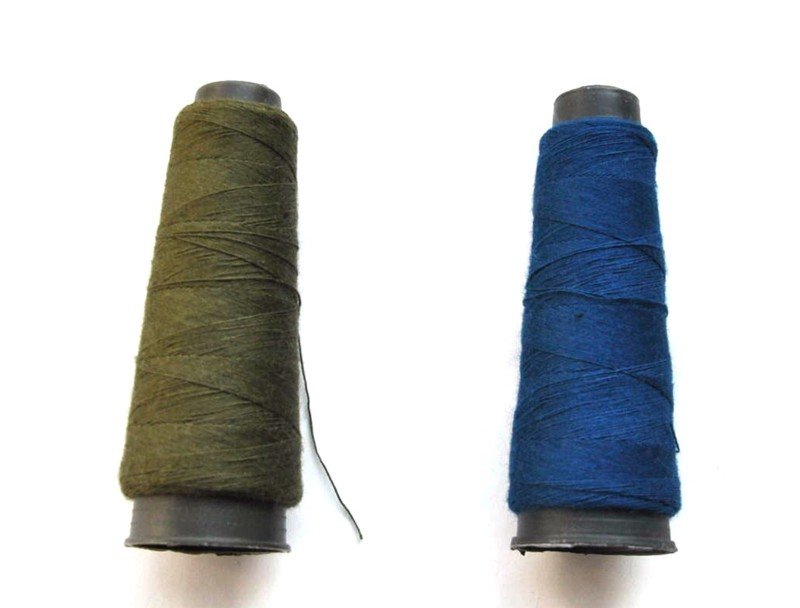

Spun meta-aramid yarn on cones, shown in olive and navy, for weaving flame-resistant fabrics and for sewing aramid garments and protective covers. Flame resistant without treatment; continuous service about 200 °C.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Meta-aramid spun yarn is produced from staple fibre of the aramid 1313 / Nomex type, which chars rather than melts in a flame and keeps its strength at temperatures where polyester and nylon fail. Supplied on cones in dyed colours (the photo shows olive and navy) or in natural cream, the yarn is used as sewing thread for fire-fighter and welding garments, aramid bags and insulation covers, as weaving and knitting yarn for flame-resistant fabrics and gloves, and for braiding heat-resistant cords. Common counts are Ne 20/2, 20/3, 30/2 and 40/2; other counts, ply numbers and colours are made to order. Bonded and lubricated sewing-thread finishes are available.

Sewing thread for flame-resistant garmentsWeaving yarn for aramid fabricsKnitting yarn for heat-resistant glovesBraided cords and lacesInsulation cover stitching

We confirm specifications and available configurations when preparing each quotation.

Product code
TIP316
Material
Meta-aramid staple fibre (aramid 1313 / Nomex type), 100 %
Construction
Ring-spun, 2- or 3-ply
Linear density
Ne 20/2, 20/3, 30/2, 40/2 standard; others to order
Colour
Olive, navy (as shown), natural cream; others to order
Service temperature (typical)
Approx. 200 °C continuous
Supply form
Cones of approx. 1–2 kg, carton packed
Note
Bonded sewing-thread finish on request

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
