Silicone Coated Meta-Aramid Fabric (Nomex Type)TIP321

Aramid Fabric

Silicone Coated Meta-Aramid Fabric (Nomex Type)

有机硅涂层间位芳纶织物(Nomex型)

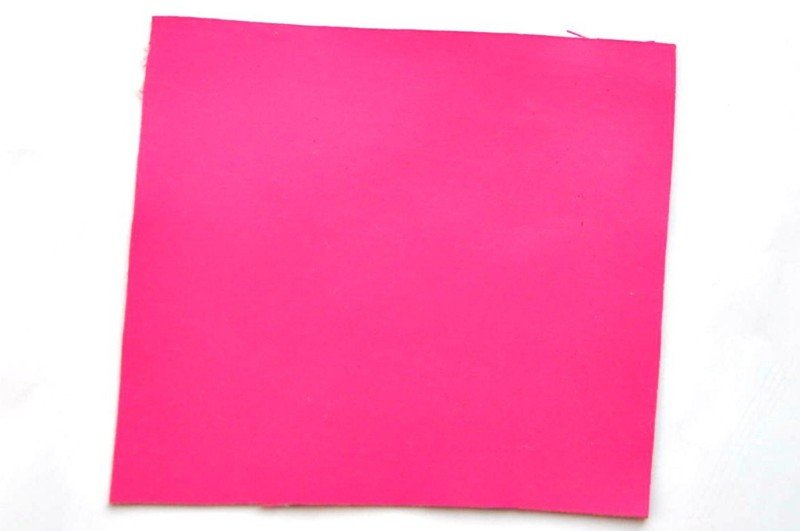

Meta-aramid fabric with a silicone rubber coating, shown in magenta. A soft, flame-resistant and waterproof fabric for heat-resistant covers, gaskets, flexible connectors and protective garments; service to about 200 °C.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Silicone coated aramid fabric combines a woven meta-aramid (aramid 1313 / Nomex type) base, which chars instead of melting, with a silicone rubber coating that seals the weave, repels water and oil mist and gives a smooth, grippy surface. The coated fabric is lighter and more flexible than silicone-coated glass cloth and does not irritate the skin when cut, so it is used for heat-resistant protective garments and aprons, flexible connectors and covers on hot equipment, gaskets and seals at moderate temperatures, and electrically insulating sleeves. The magenta colour shown is one of several options; coating on one or both sides, weights and widths are confirmed in the quotation.

Heat-resistant aprons, gloves and garmentsFlexible connectors and protective coversGaskets and seals up to 200 °CElectrical insulation sleevesFire-retardant curtains and tarpaulins

We confirm specifications and available configurations when preparing each quotation.

Product code
TIP321
Base fabric
Woven meta-aramid (Nomex type) fabric
Coating
Silicone rubber, one or both sides
Colour
Magenta (as shown); others to order
Weight
Approx. 250–450 g/m² coated
Thickness
Approx. 0.3–0.6 mm
Service temperature (typical)
Approx. 200 °C continuous
Width
1000–1500 mm
Supply form
Rolls of 50 m, PE-wrapped

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
