REJ353Rubber Expansion Joints

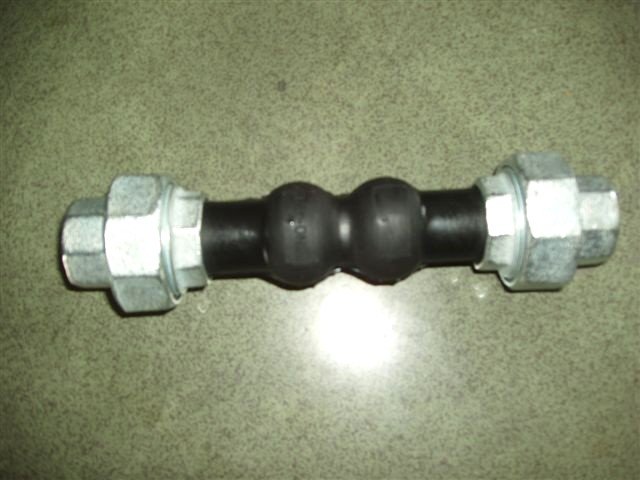

S-30 Double-Sphere Threaded Rubber Expansion Joint
S-30 双球螺纹式橡胶接头
Model S-30 threaded double-sphere rubber expansion joint with malleable iron unions for DN15–DN80 (½"–3") pipework, rated 1.0 MPa working and 3.0 MPa bursting pressure.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications
Threaded double-sphere rubber expansion joint with a polar rubber body, nylon cord fabric reinforcement, hard steel wire frame and malleable cast iron unions. The source tables list sizes DN15–DN80 (½"–3"), a working pressure of 1.0 MPa, bursting pressure of 3.0 MPa and vacuum rating of 400 mmHg, with the length and displacement values shown below for each size.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- REJ353
- Catalogue category
- Rubber Expansion Joints
- Model
- S-30
- Main body
- Polar rubber
- Reinforcement
- Nylon cord fabric
- Frame
- Hard steel wire
- Unions
- Malleable cast iron
- Nominal diameter
- DN15–DN80 (½"–3")
- Working pressure
- 1.0 MPa
- Bursting pressure
- 3.0 MPa
- Vacuum
- 400 mmHg
- Displacement values
- Axial: +extension/−compression; lateral offset
- DN15 (½")
- L: 200 mm; axial +6/−22 mm; lateral 45 mm
- DN20 (¾")
- L: 200 mm; axial +6/−22 mm; lateral 45 mm
- DN25 (1")
- L: 200 mm; axial +6/−22 mm; lateral 45 mm
- DN32 (1¼")
- L: 200 mm; axial +6/−22 mm; lateral 45 mm
- DN40 (1½")
- L: 200 mm; axial +6/−22 mm; lateral 45 mm
- DN50 (2")
- L: 200 mm; axial +6/−22 mm; lateral 38 mm
- DN65 (2½")
- L: 200 or 240 mm; axial +6/−22 mm; lateral 38 mm
- DN80 (3")
- L: 200 or 240 mm; axial +6/−22 mm; lateral 38 mm
- Material
- Polar rubber body, nylon cord fabric, hard steel wire, malleable cast iron unions
- Dimensions
- DN15–DN80 (½"–3")
Ordering
How to order this product
Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.
- Minimum order
- Confirmed in the quotation (ask us about trial quantities).
- Lead time
- Confirmed in the quotation, depending on quantity and configuration.
- Packaging
- Export packaging: rolls, cartons or pallets as required by the product and the shipment.
- Port of loading
- Shanghai, China (other ports on request).
- Trade terms
- EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
- Payment
- Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
- Samples
- Available on request; sample and courier costs are confirmed before dispatch.
- Documents
- Commercial invoice, packing list, certificate of origin, test report or material certificate on request.
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
Required construction, coating, compound or reference grade.
Thickness, width, length, diameter, weight or finished format.
Temperature, pressure, media, movement and service environment.
Required quantity, delivery country and requested timing.
Applicable standard, test report, material certificate or origin document.
