PTFE202PTFE Products

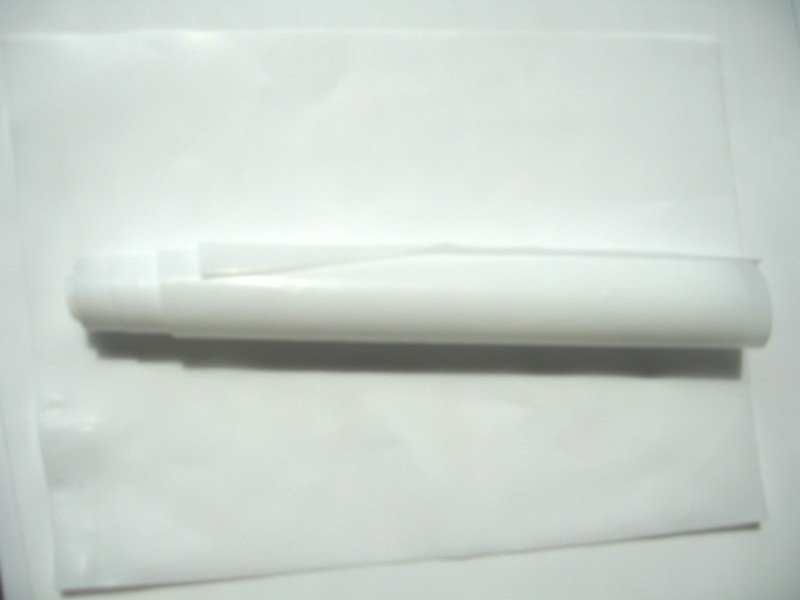

Skived PTFE Foil
聚四氟乙烯(PTFE)车削薄膜
Thin PTFE film skived from a sintered billet, thickness about 0.03 mm to 0.5 mm, white and virgin. Used for electrical insulation, release and anti-stick layers, lining, lamination and gasket facings.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications
Skived PTFE foil is produced by turning a thin continuous layer from a compression-moulded and sintered PTFE billet. The film is pure virgin PTFE: chemically inert to almost all media, non-stick, electrically insulating with very low dielectric loss, and usable from −190 °C to +260 °C. Thin foils are used for capacitor and cable insulation, release liners in press and laminating equipment, anti-stick covers, bearing and slide surfaces and as facing on laminates; thicker foils are laminated to glass fabric or bonded to rubber. Etched (one-side treated) foil for bonding is available. Standard widths are up to 300 mm for the thinnest gauges and up to 1000 mm for thicker foils.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- PTFE202
- Material
- Virgin PTFE, skived
- Thickness
- Approx. 0.03–0.5 mm
- Width
- Up to 300 mm (thin) / 1000 mm (thicker gauges)
- Colour
- White (natural)
- Density
- Approx. 2.14–2.20 g/cm³
- Service temperature (typical)
- −190 °C to +260 °C
- Options
- Etched one side for bonding
- Supply form
- Rolls on cores, boxed
Ordering
How to order this product
Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.
- Minimum order
- Confirmed in the quotation (ask us about trial quantities).
- Lead time
- Confirmed in the quotation, depending on quantity and configuration.
- Packaging
- Export packaging: rolls, cartons or pallets as required by the product and the shipment.
- Port of loading
- Shanghai, China (other ports on request).
- Trade terms
- EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
- Payment
- Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
- Samples
- Available on request; sample and courier costs are confirmed before dispatch.
- Documents
- Commercial invoice, packing list, certificate of origin, test report or material certificate on request.
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
Required construction, coating, compound or reference grade.
Thickness, width, length, diameter, weight or finished format.
Temperature, pressure, media, movement and service environment.
Required quantity, delivery country and requested timing.
Applicable standard, test report, material certificate or origin document.
