PTFE Thread Seal TapePTFE204

PTFE Products

PTFE Thread Seal Tape

聚四氟乙烯(PTFE)生料带

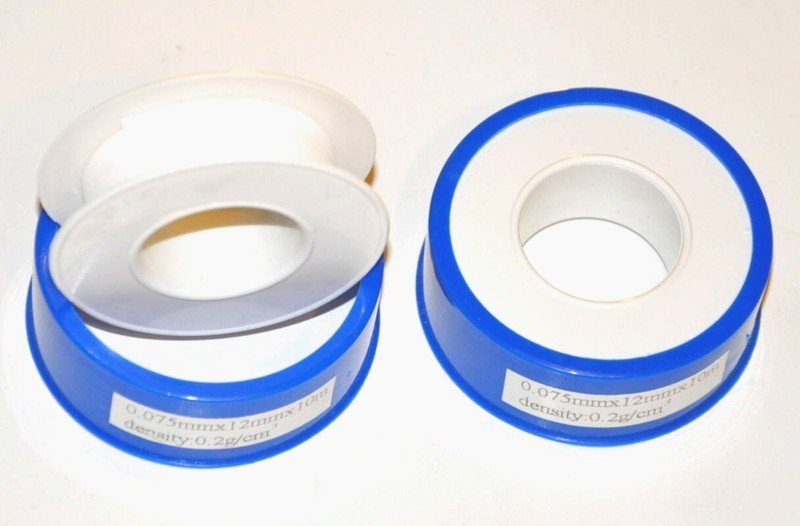

PTFE thread seal tape on plastic spools, standard size 12 mm × 0.075 mm × 10 m with a density of about 0.2 g/cm³ as labelled. Seals threaded joints in water, gas, air and chemical lines; other widths, thicknesses and densities to order.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

PTFE thread seal tape (also called plumber's tape) is an unsintered, oriented PTFE film that is wrapped around male pipe threads before assembly to fill the thread clearance and lubricate the joint. It is chemically inert, usable from −190 °C to +260 °C, does not harden or shrink and makes joints easy to disassemble. The spools in the photo are labelled 0.075 mm × 12 mm × 10 m, density 0.2 g/cm³; heavier densities (0.3–1.2 g/cm³), wider tapes (19 mm, 25 mm, 50 mm) and longer lengths (12 m, 15 m, 50 m) are made to order, as are gas-approved yellow tape and oxygen-service tape. Private-label spools and blister packing are available for retail.

Plumbing and heating installationsCompressed air and pneumatic linesGas lines (yellow grade)Chemical and process pipingRetail and hardware packs (private label)

We confirm specifications and available configurations when preparing each quotation.

Product code
PTFE204
Material
Unsintered oriented PTFE film
Size
12 mm × 0.075 mm × 10 m (as shown)
Density
Approx. 0.2 g/cm³ (0.3–1.2 g/cm³ to order)
Options
Widths 12–50 mm; lengths 10–50 m; yellow gas grade; oxygen grade
Service temperature (typical)
−190 °C to +260 °C
Colour
White (standard); yellow gas grade
Packing
Plastic spools, 10 per inner box; blister cards on request

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
