Skived PTFE SheetPTFE203

PTFE Products

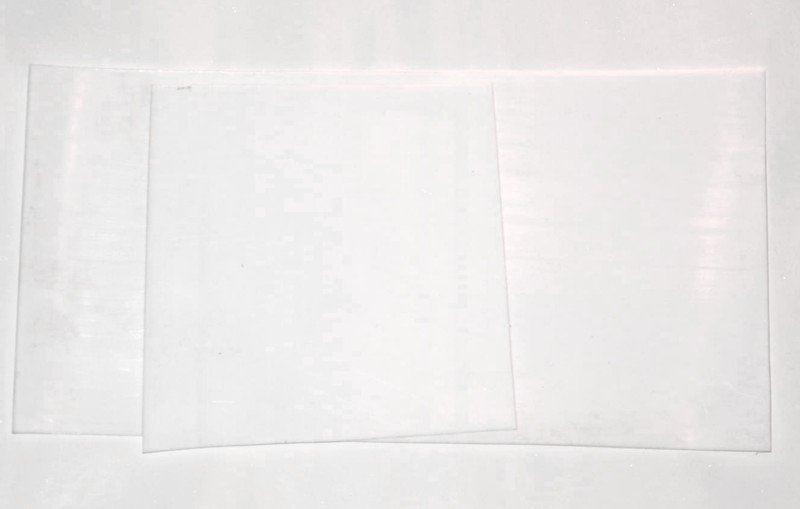

Skived PTFE Sheet

聚四氟乙烯(PTFE)车削板

PTFE sheet skived from a sintered billet in thicknesses from about 0.5 mm to 6 mm, supplied as cut sheets or rolls. Virgin white PTFE for gaskets, linings, slide pads, insulation and machining of parts.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Skived PTFE sheet is cut from a moulded and sintered PTFE cylinder in a continuous layer, which gives a uniform thickness and a smooth surface over large areas. Virgin PTFE resists practically all chemicals, has the lowest coefficient of friction of any solid, does not absorb water, is an excellent electrical insulator and remains serviceable from −190 °C to +260 °C. Sheets are used for flange gaskets and envelope gaskets, chemical-resistant linings, slide bearings and expansion pads, insulation in electrical equipment and as stock for machined parts. Filled grades (glass, graphite, bronze) are available for higher wear resistance and lower creep. Standard sheet sizes are 1000 × 1000 mm and 1200 × 1200 mm; thinner gauges are also rolled.

Flange and envelope gasketsChemical-resistant liningsSlide bearings and expansion padsElectrical insulationMachined parts and seals

We confirm specifications and available configurations when preparing each quotation.

Product code
PTFE203
Material
Virgin PTFE, skived; filled grades on request
Thickness
Approx. 0.5–6 mm
Size
1000 × 1000 mm, 1200 × 1200 mm or rolls
Colour
White (natural)
Density
Approx. 2.14–2.20 g/cm³
Service temperature (typical)
−190 °C to +260 °C
Chemical resistance
Inert to almost all chemicals
Supply form
Cut sheets or rolls, boxed

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
