PTFE Packing

聚四氟乙烯(PTFE)盘根

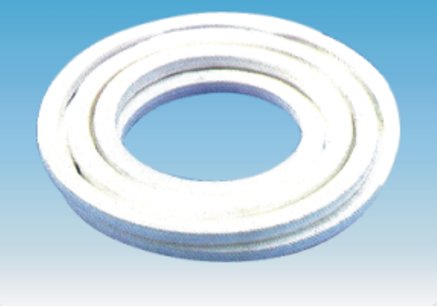

Braided compression packing made from pure PTFE yarn, white as shown; usually supplied with a PTFE dispersion or silicone-free lubricant. A chemically inert, non-contaminating packing for valves and pumps in chemical, food and pharmaceutical service.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

PTFE packing is braided from 100 % PTFE filament or expanded PTFE yarn into a square-section rope and, in the standard grade, impregnated with PTFE dispersion to improve density and reduce friction. It is inert to almost all chemicals (pH 0–14, except molten alkali metals and elemental fluorine), does not contaminate the product, has no wear effect on shafts and works from −200 °C to +260 °C. The packing seals valve stems, pump shafts and agitators in chemical, pharmaceutical, food and pulp plants and is also used in oxygen service when supplied without lubricant. Sections from 3 mm to 50 mm are supplied in coils of 8 m or as pre-cut rings.

Valves and pumps in chemical plantsFood, beverage and pharmaceutical equipmentAgitators and mixersOxygen service (lubricant-free grade)Pre-cut rings for stuffing boxes

We confirm specifications and available configurations when preparing each quotation.

Product code
PTFE236
Material
Pure PTFE filament yarn, PTFE-dispersion impregnated
Construction
Square braided packing
Colour
White
Cross-section
3–50 mm square to order
Service temperature (typical)
−200 °C to +260 °C
pH range
0–14 (except molten alkali metals and fluorine)
Pressure (typical)
Approx. 2 MPa pumps / 10 MPa valves (typical)
Supply form
Coils of 8 m or pre-cut rings, boxed

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
