Para-Aramid Cloth (Kevlar Type)AF282

Aramid Fabric

Para-Aramid Cloth (Kevlar Type)

对位芳纶布(Kevlar型)

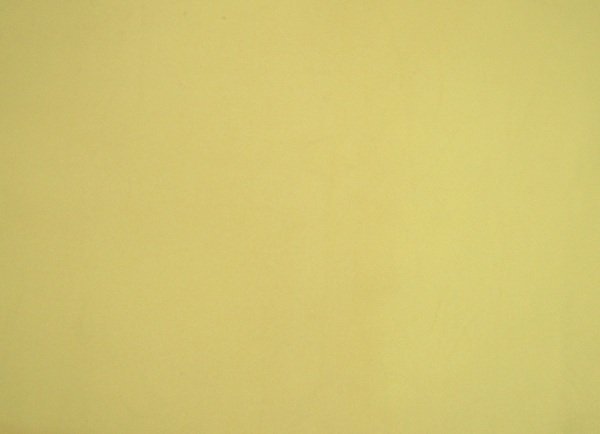

Woven para-aramid fabric (the fibre class of Kevlar and Twaron), yellow as shown. Very high tensile strength and cut resistance with good heat resistance; used for cut-protective gear, composite reinforcement, conveyor belts and ballistic layers.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Para-aramid fibres have an aromatic polyamide chain that gives them a tensile strength about five times that of steel at equal weight, very high modulus, excellent cut and abrasion resistance and no melting point: the fibre chars above about 450 °C and is used continuously at 160–200 °C. Woven into plain or twill fabric it reinforces epoxy and vinyl-ester composites, makes cut-resistant gloves, sleeves and aprons, lines conveyor belts, hoses and brake components, and forms layers in ballistic and stab-resistant panels. Fabrics are woven from 1000–3000 denier yarn in weights of about 200 g/m² to 500 g/m²; the yellow colour is natural to the fibre. Tell us the weight, weave and width and whether you need a specific yarn brand.

Cut- and abrasion-resistant protective gearComposite reinforcementConveyor belt and hose reinforcementBallistic and stab-resistant layersHeat-resistant gloves and sleeves

We confirm specifications and available configurations when preparing each quotation.

Product code
AF282
Material
Para-aramid filament yarn (Kevlar / Twaron type), 100 %
Weave
Plain (as shown) or twill
Colour
Yellow (natural)
Weight
Approx. 200–500 g/m²
Yarn
1000–3000 denier
Service temperature (typical)
Approx. 160–200 °C continuous; chars above 450 °C
Width
1000–1500 mm
Supply form
Rolls on tubes, PE-wrapped

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
