TIP314Aramid Fabric
Meta-Aramid Twill Fabric (Nomex Type)
间位芳纶斜纹布(Nomex型)

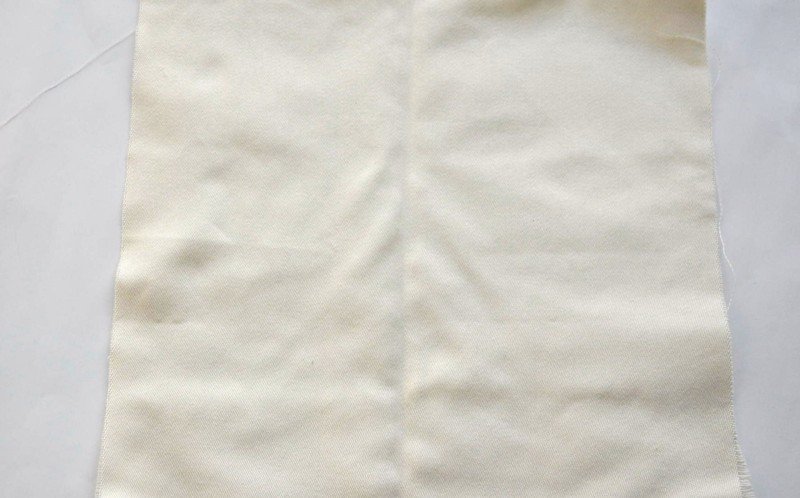

Woven meta-aramid fabric (twill weave, cream) that is inherently flame resistant: it chars instead of melting, keeps about 60 % of its strength at 200 °C and resists most chemicals. Used for protective clothing, filtration and electrical insulation.
This product record is currently shown in English until its technical translation has been reviewed.
Product details
Technical specifications
Meta-aramid (the fibre type sold as aramid 1313 or under the Nomex brand) is a polyamide with an aromatic chain that gives the fabric permanent flame resistance without any chemical treatment: in a flame the fabric chars and does not melt, drip or support combustion, and the limiting oxygen index is around 28–32 %. The fabric withstands continuous temperatures of about 200 °C and short exposure to 250 °C, resists most acids and alkalis and has good abrasion resistance and dimensional stability. This twill weave cloth in cream is used for flame-resistant work wear and fire-fighter underlayers, welding and foundry protective garments, filter bags for hot gas, laundry and ironing covers, and electrical insulation. Weights from about 150 g/m² to 260 g/m² are available; other colours and antistatic blends can be ordered.
We confirm specifications and available configurations when preparing each quotation.
- Product code
- TIP314
- Material
- Meta-aramid fibre (aramid 1313 / Nomex type), 100 %
- Weave
- Twill weave
- Colour
- Cream
- Weight
- Approx. 150–260 g/m²
- Limiting oxygen index
- Approx. 28–32 %
- Service temperature (typical)
- Approx. 200 °C continuous; short peaks 250 °C
- Width
- 1500 mm standard
- Supply form
- Rolls of 50–100 m, PE-wrapped
Ordering
How to order this product
Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.
- Minimum order
- Confirmed in the quotation (ask us about trial quantities).
- Lead time
- Confirmed in the quotation, depending on quantity and configuration.
- Packaging
- Export packaging: rolls, cartons or pallets as required by the product and the shipment.
- Port of loading
- Shanghai, China (other ports on request).
- Trade terms
- EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
- Payment
- Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
- Samples
- Available on request; sample and courier costs are confirmed before dispatch.
- Documents
- Commercial invoice, packing list, certificate of origin, test report or material certificate on request.
For an accurate quotation
Include the operating and delivery requirements that affect product selection.
When available, attach a specification sheet, drawing or reference sample details in your message.
Required construction, coating, compound or reference grade.
Thickness, width, length, diameter, weight or finished format.
Temperature, pressure, media, movement and service environment.
Required quantity, delivery country and requested timing.
Applicable standard, test report, material certificate or origin document.
