PTFE Tape (Unsintered)PTFE234

PTFE Products

PTFE Tape (Unsintered)

聚四氟乙烯(PTFE)带(未烧结)

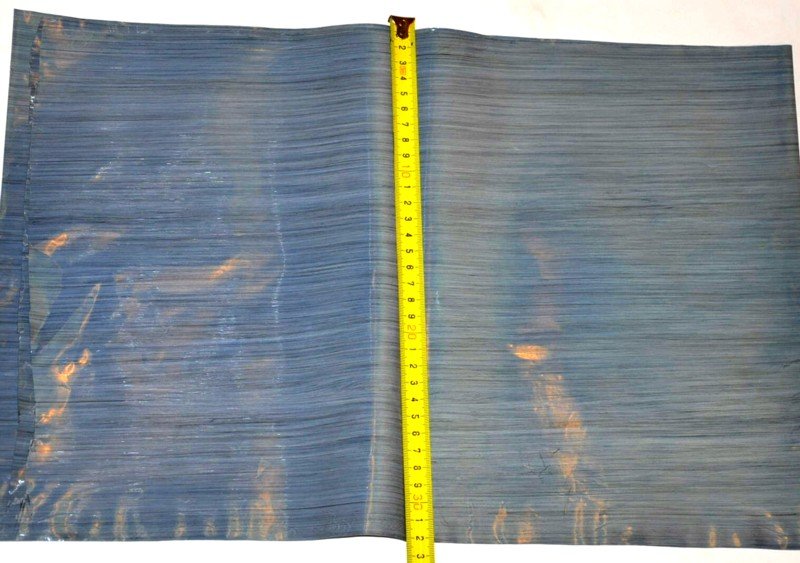

Wide unsintered PTFE tape, gray, width about 300 mm, thickness 0.1 mm. A soft, calendered tape used as a raw material for PTFE packings and gaskets, for cable wrapping and for sealing rough flange faces; about 25 kg per roll.

Datasheet values listedThe values below come from the manufacturer datasheet or our catalogue. Final values are confirmed in the quotation and supporting documents.

Product details

Technical specifications

Unsintered PTFE tape is produced by paste extrusion and calendering of PTFE fine powder without the final sintering step, so the material stays soft, conformable and easily deformed under pressure. The gray tape in this listing is typically a graphite- or pigment-filled grade; natural white tape is also made. It is supplied in wide rolls (width about 300 mm, thickness 0.1 mm, about 25 kg per roll) and is used as a raw material by packing manufacturers, who slit and twist it into PTFE yarn or fold it into gasket tape; as a wrapping tape for cables and wires that are later sintered; as a soft sealing layer between rough or damaged flange faces; and for lining and release applications. Other widths, thicknesses and roll weights are available to order.

Raw material for braided PTFE packingGasket and joint sealant tapeCable and wire wrapping before sinteringSealing of rough flange facesLining and release layers

We confirm specifications and available configurations when preparing each quotation.

Product code
PTFE234
Material
Unsintered PTFE (paste-extruded, calendered)
Colour
Gray
Width
About 300 mm
Thickness
0.1 mm (others to order)
Weight
Approx. 25 kg per roll
Service temperature (typical)
Up to 260 °C after sintering
Supply form
Rolls on cores, PE-wrapped, carton or pallet packed

Ordering

How to order this product

Prices are quoted per inquiry. Send the specification, quantity and destination and you receive a written quotation by e-mail, usually within two business days.

Minimum order
Confirmed in the quotation (ask us about trial quantities).
Lead time
Confirmed in the quotation, depending on quantity and configuration.
Packaging
Export packaging: rolls, cartons or pallets as required by the product and the shipment.
Port of loading
Shanghai, China (other ports on request).
Trade terms
EXW, FOB Shanghai, CFR or CIF, as stated in the quotation.
Payment
Bank transfer (T/T); letter of credit (L/C) negotiable for larger orders, as agreed in the quotation.
Samples
Available on request; sample and courier costs are confirmed before dispatch.
Documents
Commercial invoice, packing list, certificate of origin, test report or material certificate on request.

For an accurate quotation

Include the operating and delivery requirements that affect product selection.

When available, attach a specification sheet, drawing or reference sample details in your message.

01Material or grade

Required construction, coating, compound or reference grade.

02Dimensions and format

Thickness, width, length, diameter, weight or finished format.

03Operating conditions

Temperature, pressure, media, movement and service environment.

04Quantity and destination

Required quantity, delivery country and requested timing.

05Standards and documents

Applicable standard, test report, material certificate or origin document.
